ABATRON社 JTAGエミュレータ (BDI3000型/BDI2000型/BDI1000型)

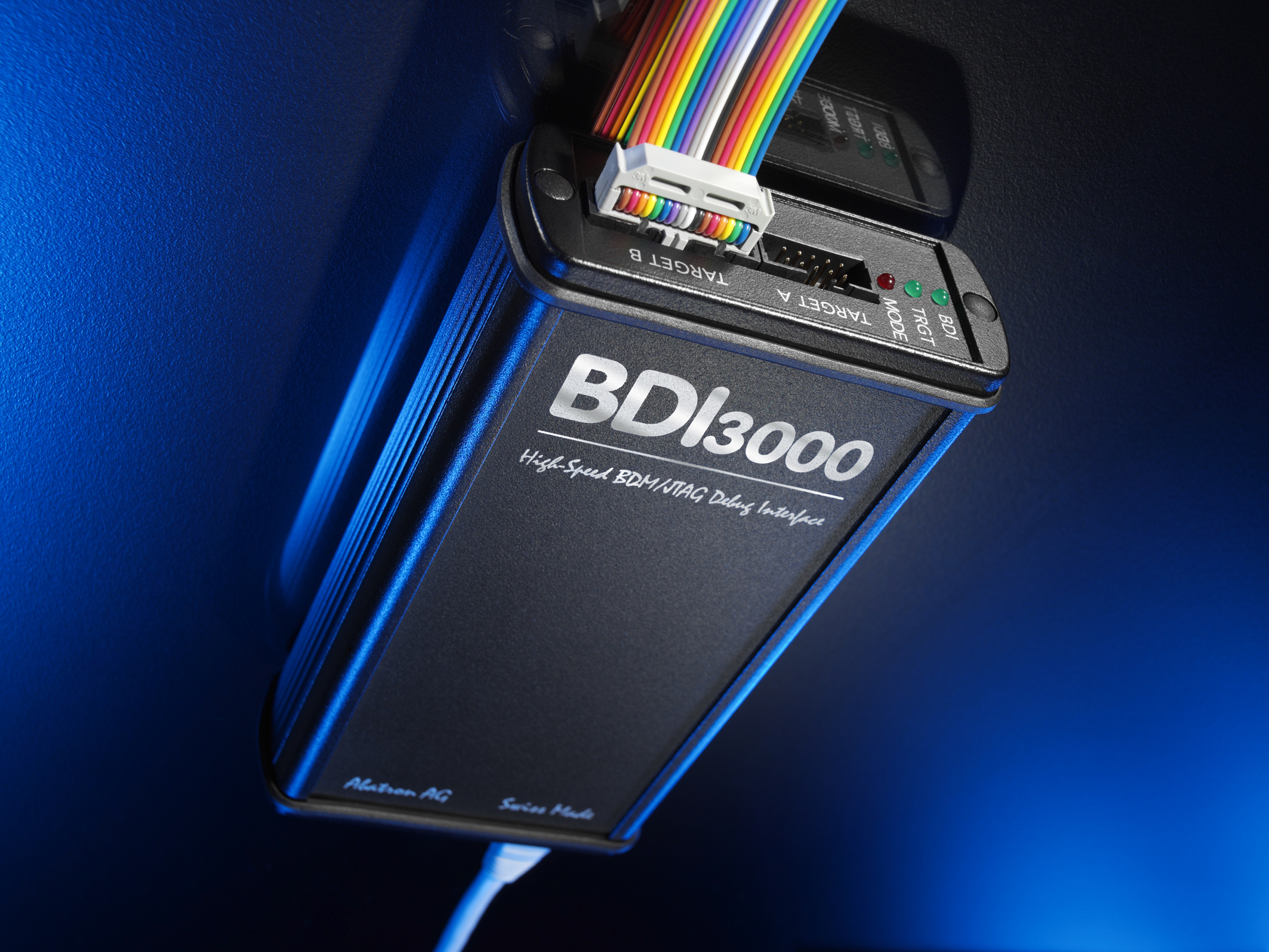

BDI3000 JTAG Debugger

ABATRON社 BDI3000型は、低価格のBDM/JTAGエミュレータです。BDI2000型の後継・上位機種です。従来機種BDI2000型をより小型・軽量化し、更にLANインターフェイスを10/100BaseT対応で高速化しまいます。
本体のファームウェアはWindowsベースのユーティリティで容易にアップデート可能ですので、ターゲットCPUを変更した場合でも、本体はそのままでCPUライセンスを追加する事によって、既存の資産を活かしたまま新しいCPUに対応可能です。

組み込みLinux開発環境では標準のGDBデバッガを使用してデバッグできるのみならず、ホストコンピュータとTELNET接続を行い、簡単なコマンドラインコマンドで実行の制御・メモリ/レジスタの読み書き・オンボードフラッシュROMへの書き込みを行う事ができます。更にTFTPプロトコルをサポートしているので、BDI3000の電源投入時に自動的にターゲットメモリにダウンロードする事ができ、デバッグの効率化を図る事が可能です。

ターゲット上の通信手段が安定していない状態や、最終ターゲットに通信ポートを備えていないようなシステムに対するデバッグ時にも威力を発揮します。

対応ターゲットCPU:  ColdFire, MPC5xx/8xx, AMCC4xx, PPC6xx/7xx/7400/52xx/
                             82xx/83xx/P10xx/P20xx, P40xx,  MPC744x/745x, MPC86xx,
                             MPC85xx, MPC55xx, ARM7/9/9E, ARM11, Cortex-A8/-M3,
                             XScale, MIPS32, MIPS64, XLS/XLR, PA6T

WINDOWSライブラリを使用して専用のGUIの構築も可能(BDI3000-Access)。
Flashダウンローダーや簡易試験装置としての BDI3000-Program タイプ
BDM/JTAG クロック  最高32MHz
プログラムダウンロードレート:  最高1500KBytes/s
ターゲットシステム電圧:  1.2 〜 5V
サイズ(ターゲット接続ケーブル除く):  160 x 85 x 35mm
組み込みLinux開発環境では、業界標準ツールとしてワールドワイドにおいて定評があります。

BDI3000/BDI2000用にチューニングされたLinux Kernelデバッグ用ツール LunixScope-JTD



ABATRON(アバトロン)社の NEWS (英文)



Support for P3041 and P5020

Abatron adds on-chip debugging support for the QorlQ P3041 and P5020 communications processors from Freescale.




Support for AppliedMicro's APM86290

Abatron adds on-chip debugging support for the new APM86290 processor family from AppliedMicro.

Abatron Joins eNsemble™ Multi-Core Alliance

Abatron Joins eNsemble™ Multi-Core Alliance to Promote Development Tools for Multi-Core Processors.

Support for AppliedMicro's APM821xx

Abatron adds on-chip debugging support for the new APM821xx processor family from AppliedMicro.

Support for AppliedMicro's APM83290

Abatron adds on-chip debugging support for the new APM83290 processor from AppliedMicro.

Support for Freescale's P4080

Abatron adds on-chip debugging support for the new QorlQ P4080 from Freescale.

Support for Freescale's P2020

Abatron adds on-chip debugging support for the new PowerPC P2020 from Freescale.

Support for RMI Corporation's XLR and           XLS Processors

Abatron adds on-chip development support for RMI Corporation’s Multi-core Multi Threaded XLR and XLS Processor Families



Support for Cavium Networks OCTEON™          and OCTEON Plus

Abatron adds on-chip development support for Cavium Networks family of OCTEON™ and OCTEON Plus



Support for ARM Cortex-M3

Abatron adds on-chip debugging support for ARM Cortex-M3.



Support for AMCC PowerPC 460

Abatron adds support for new AMCC PowerPC 460.



BDI3000 replaces BDI2000

The new BDI3000 replaces the BDI2000 for bdiGDB, bdiPro and bdiAccess.



New BDI3000

Abatron introduces the new BDI3000 high-speed BDM/JTAG debug interface.



Support for ARM Cortex-A8 (OMAP3430)

Abatron adds on-chip debugging support for ARM Cortex-A8 (OMAP3430).



Support for Freescale's MPC5121

Abatron adds on-chip debugging support for Freescale's PowerPC MPC5121



Support for Marvell's Feroceon Cores

Abatron adds comprehensive on-chip debugging support for Marvell's Feroceon Cores.
